How to change DTU to AT mode？
-
-
Admin This guy is lazy,Introduction has not been set
0 People liked this article · 3481 views

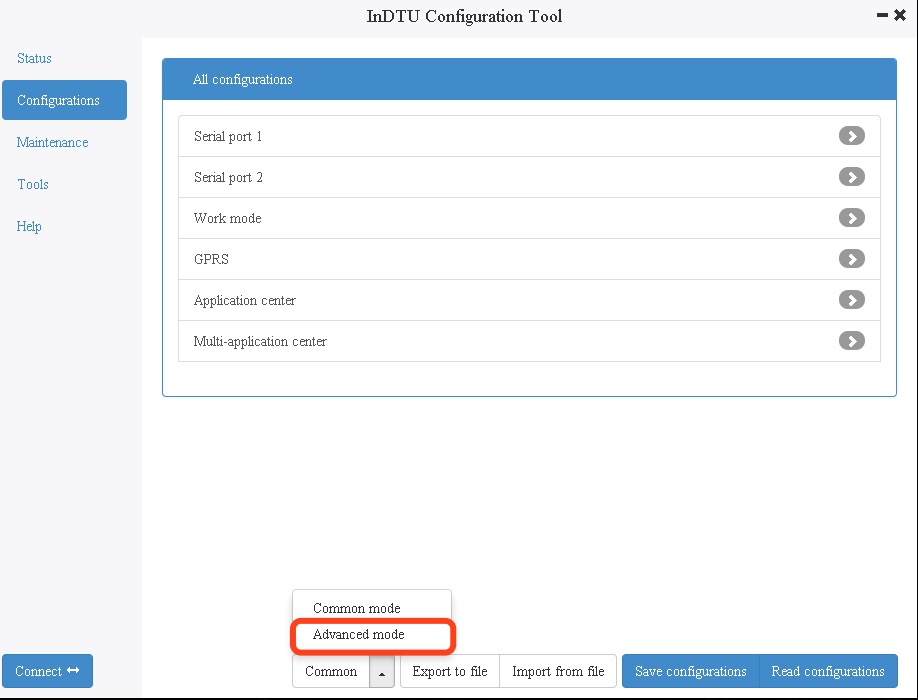

Enter Advanced config mode:

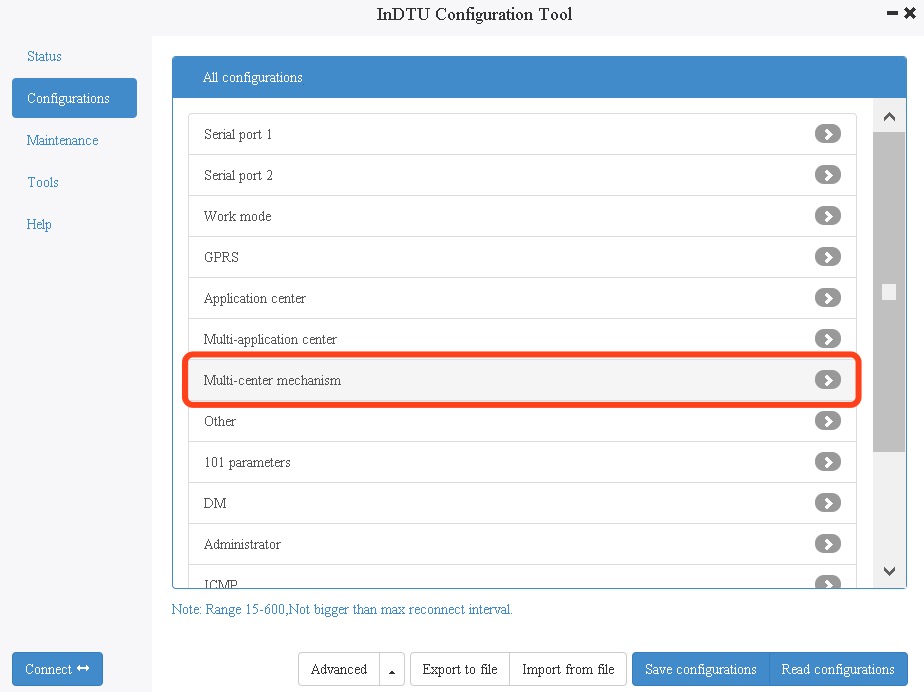

Enter Multi-center mechanism:

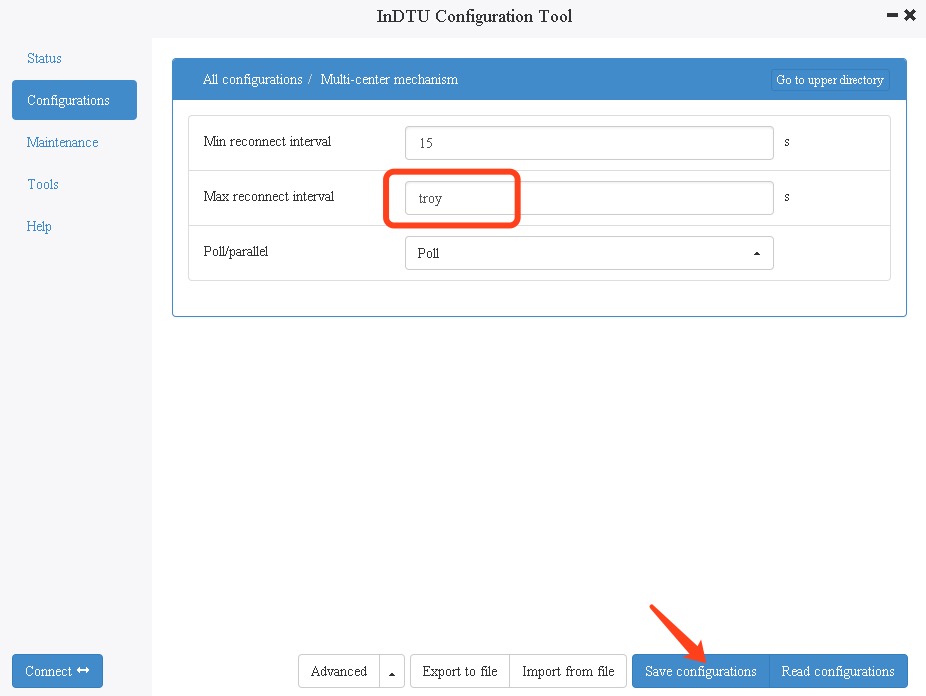

Change Max reconnect interval vaule to : troy
Save config,reboot DTU.
Troy mode SIM Light and STATUS Light flash alternately.
Now you can sand AT command through COM 1.
Exit at mode. After entering at mode, the serial port is always connected to the module, so it is unable to log in DTU directly with configuration tool to read / download configuration and other operations. If you want to connect DTU with configuration tool, you need to connect to COM2; or connect PC with serial port, press ESC key of keyboard / send exit with serial port tool.
退出AT模式。进入AT模式后，串口一直连模块，无法直接用配置工具登陆DTU读取/下载配置等操作。如果想用配置工具连DTU需要接到串口2；或者用串口一接pc，按键盘的ESC键/用串口工具发送exit.
